Oyster 805
Length
25.28 m
Beam
6.35 m
Draft
3.42 m
Cabins
4
All years

Specifications

All years
Length: 25.28 m
Beam: 6.35 m
Draft: 3.42 m
Displacement: 64700 kg
Cabins: 4
No. of engines: 1
Engine Power: 250 HP
Fuel Capacity: 2750 L
Water Capacity: 1850 L
Boat type: Sail
Boat Class: Cruiser Sail
Engine: Cummins turbo charged B4.5 250 186kW (250hp) at 2600 rpm

Model overview

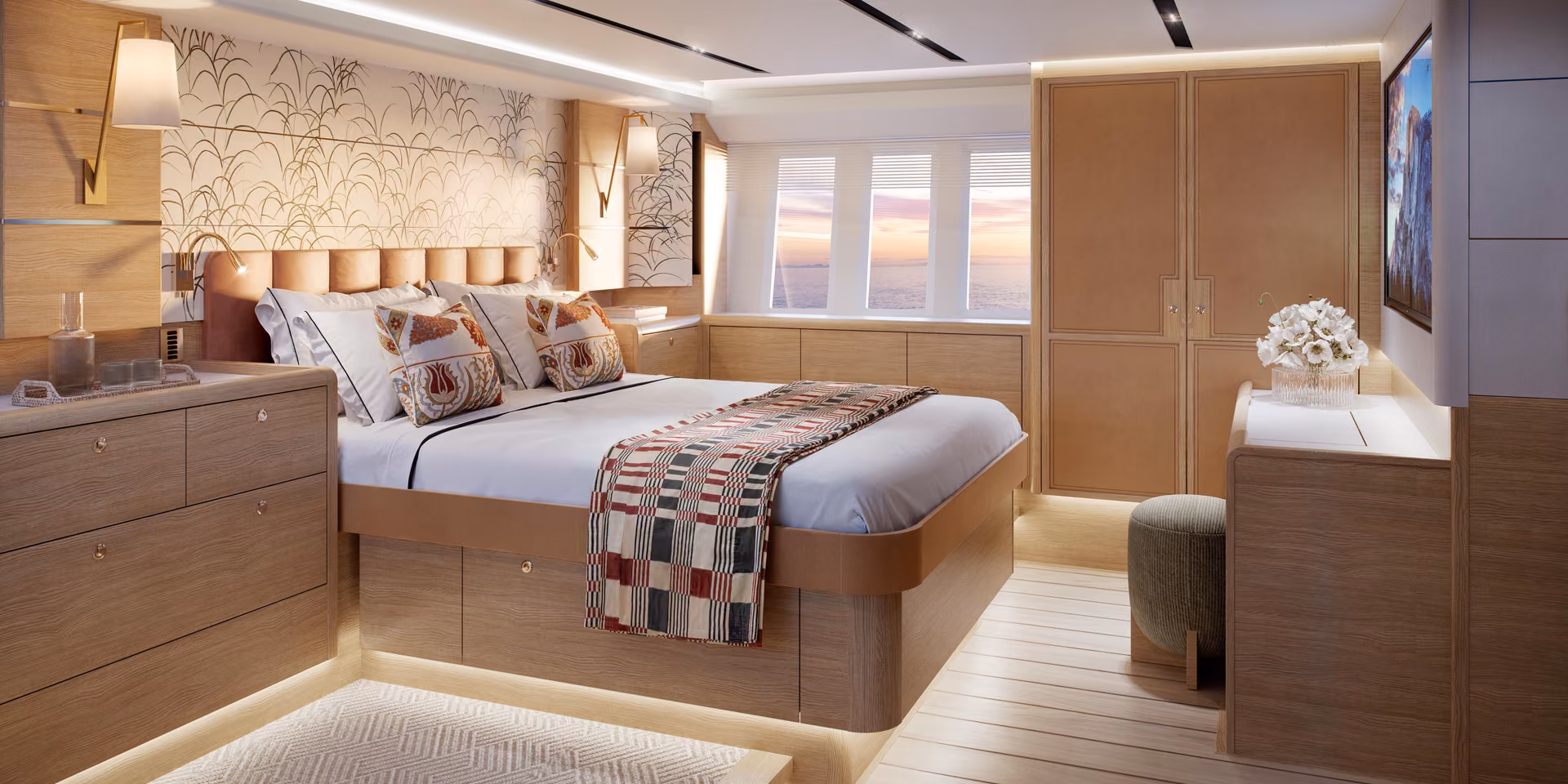

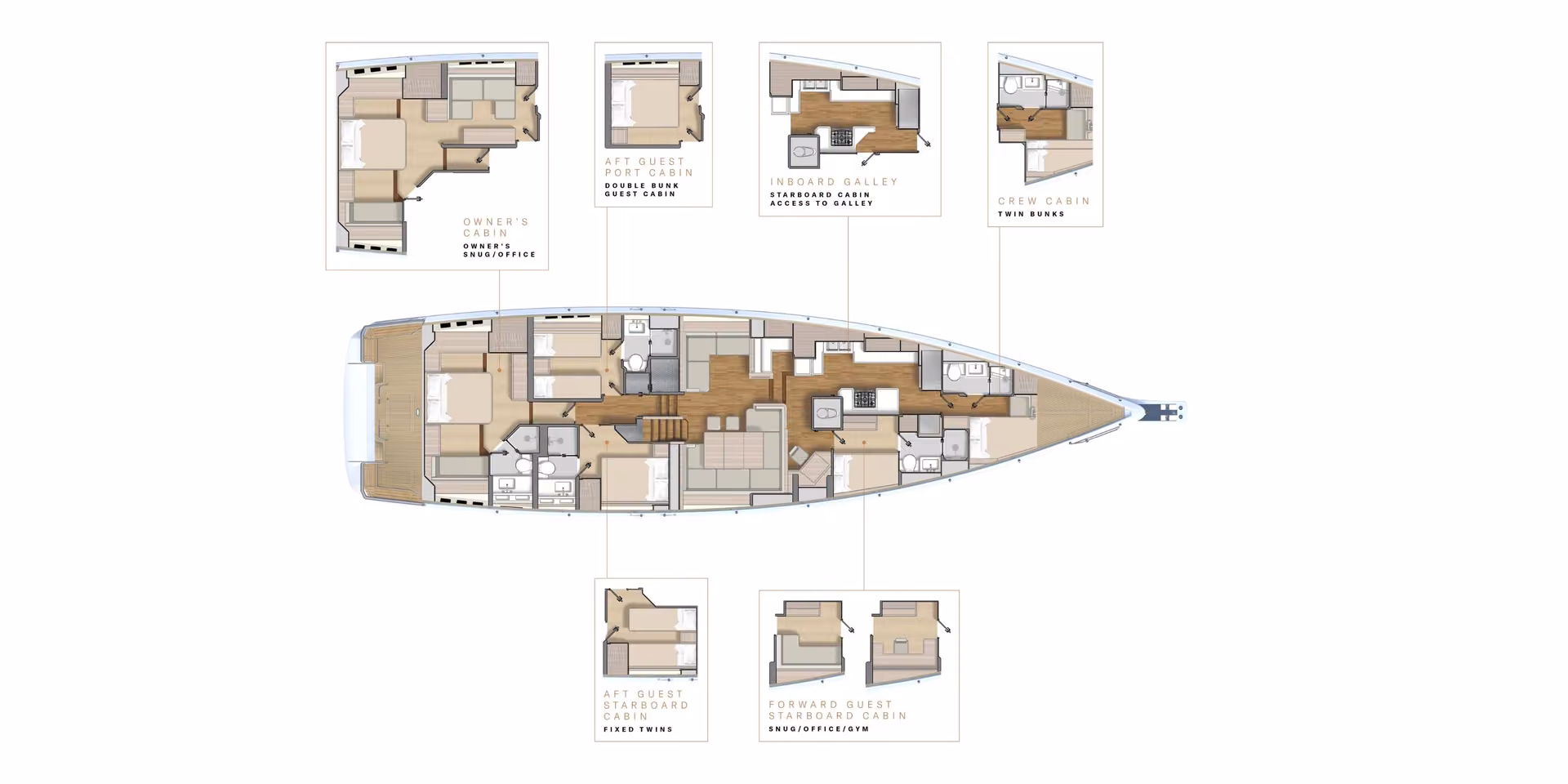

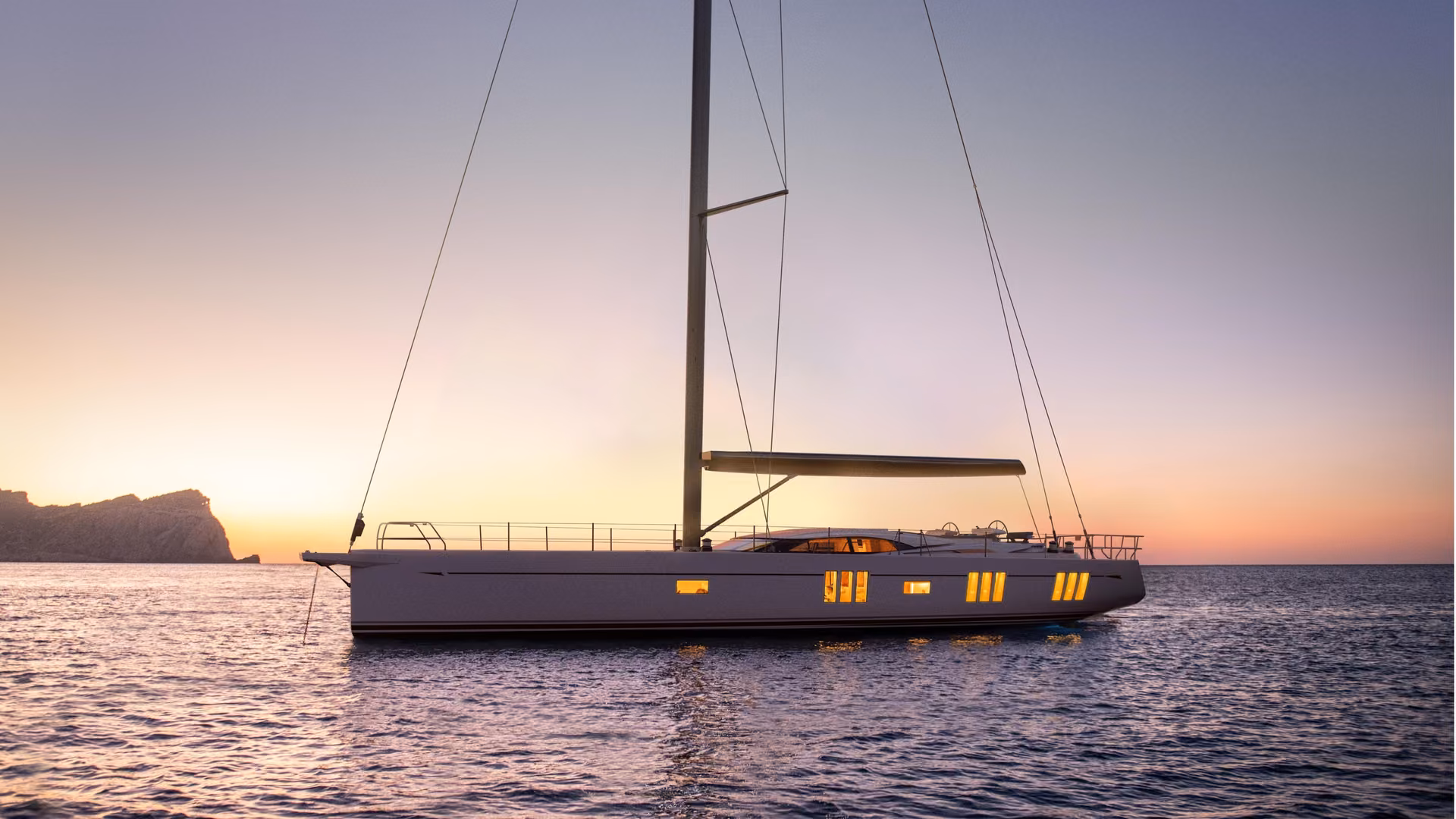

The Oyster 805 introduces a larger cruising platform with expanded Seascape glazing, adaptable living spaces and four en-suite owner and guest cabins in the illustrated layout. Interior options include a bar, office or gym. Separate crew accommodation supports longer stays aboard.

Additional specifications

  • Hull length: 23.95 m
  • Waterline length: 22.71 m
  • Sail area, slab reefing: 345.75m²
  • Approximate air draught, excluding antennas: 37.08 m

Specifications reflect Oyster’s published information checked in September 2026. Standard-keel figures are shown above; optional layouts and equipment may differ.

For more information, visit the Oyster 805.

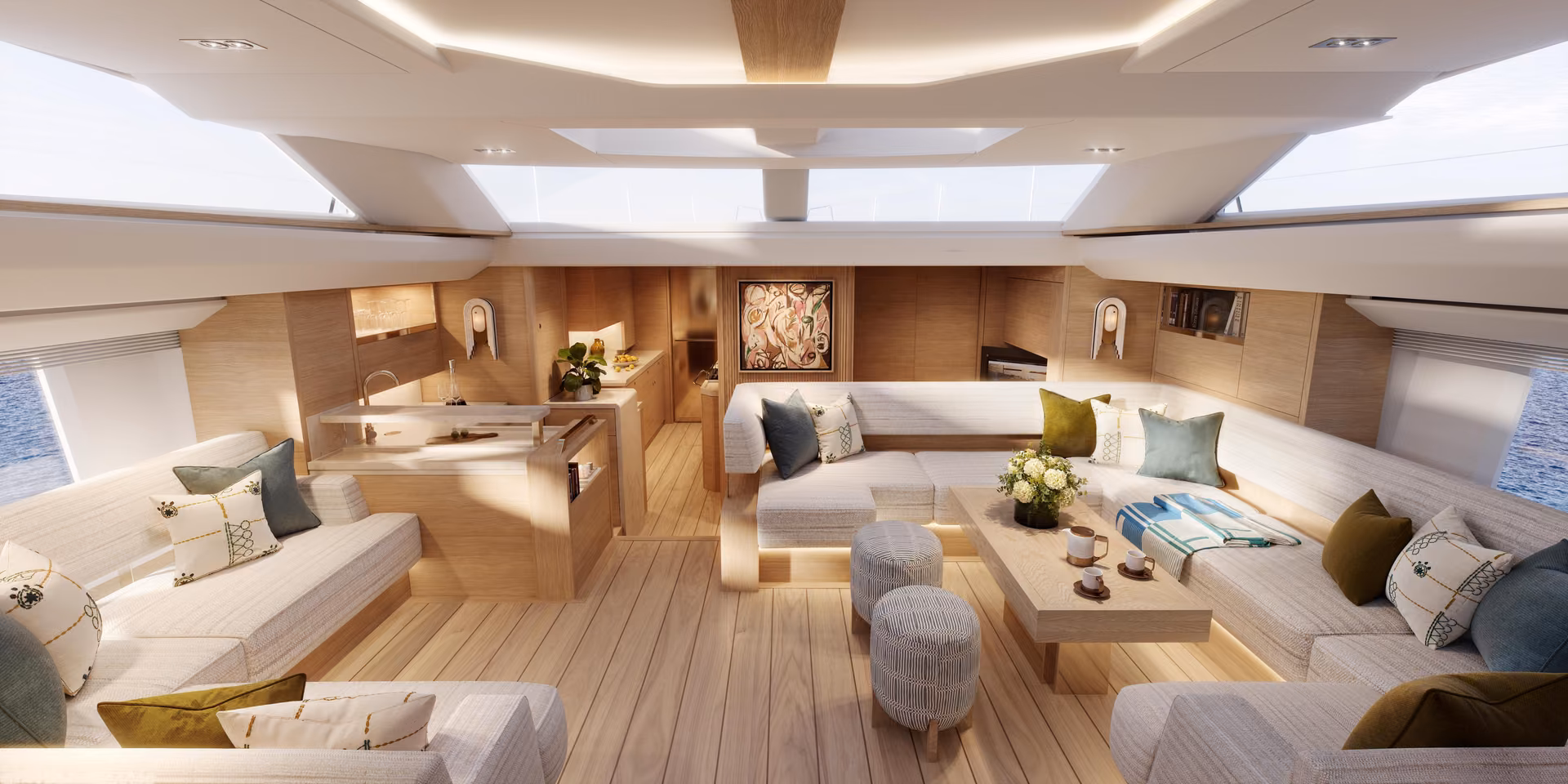

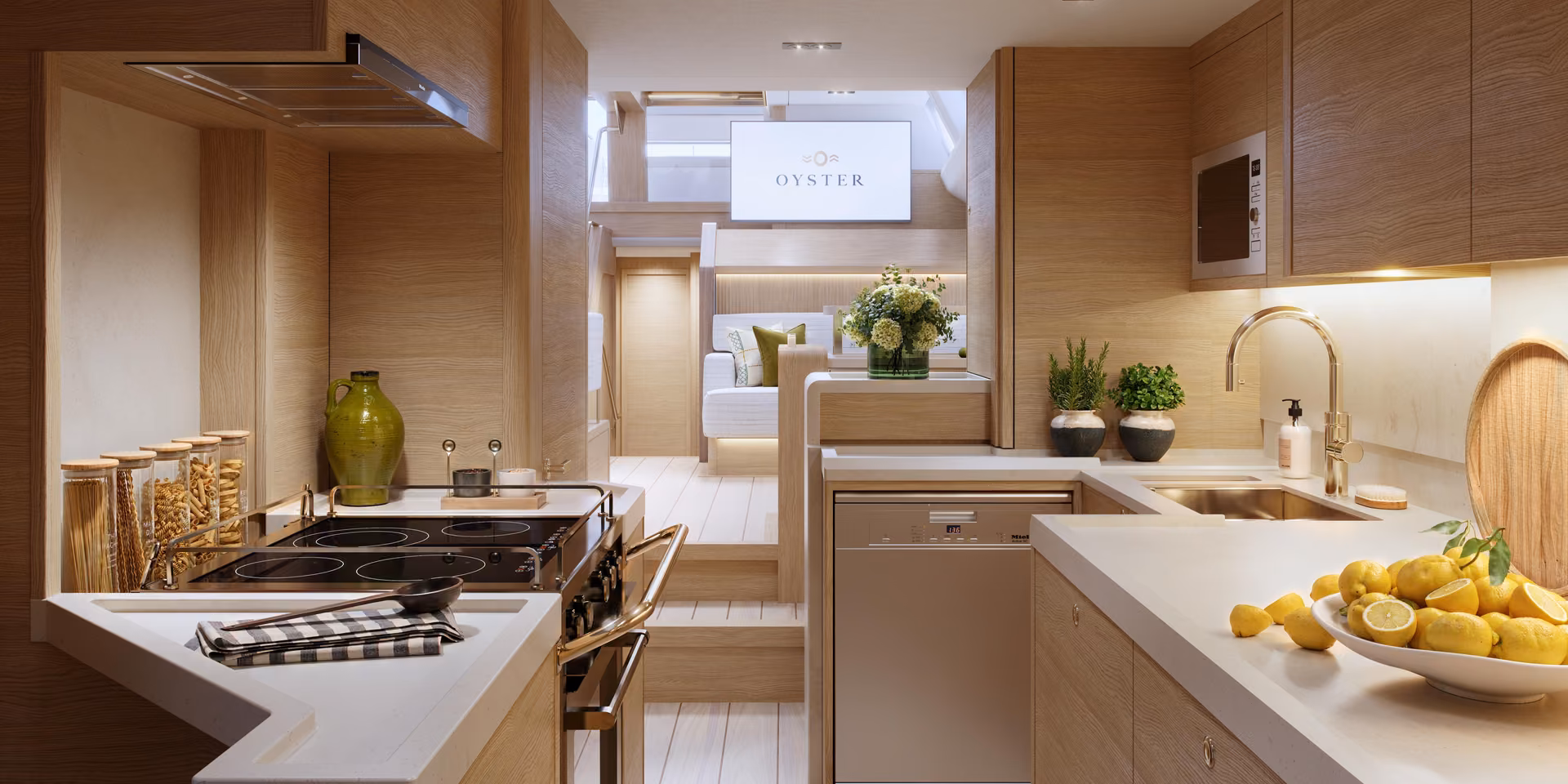

Interior

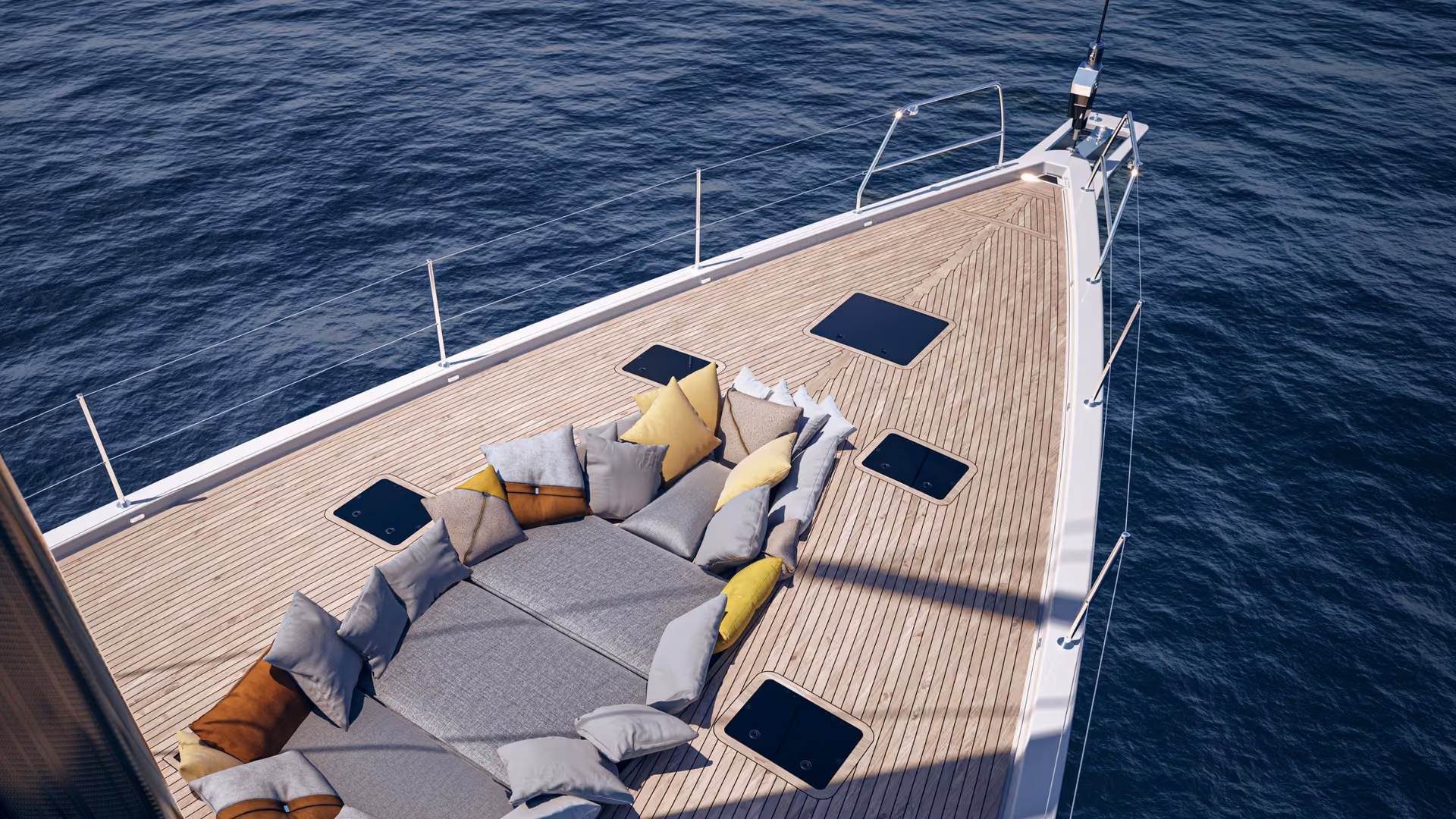

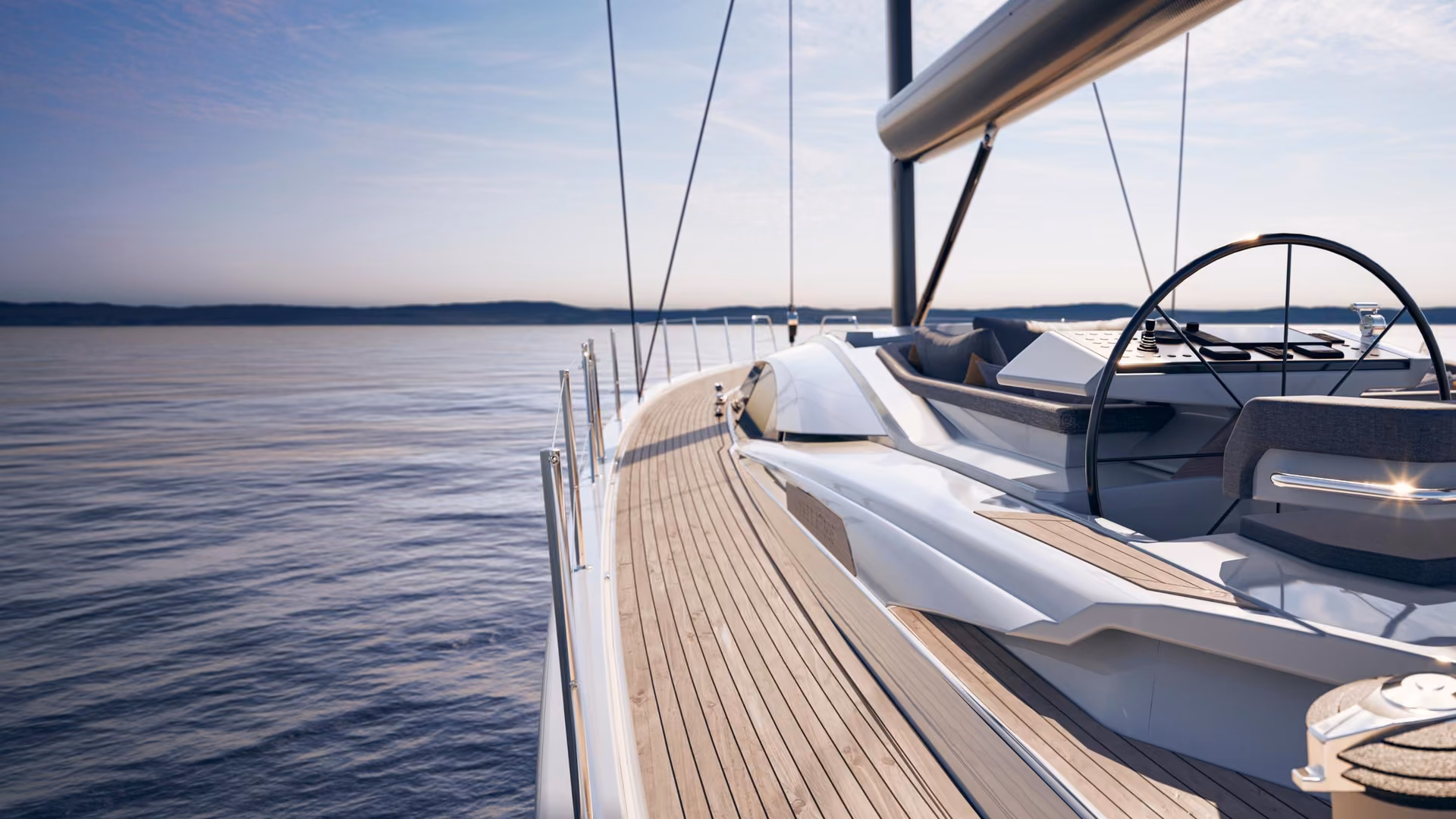

Deck

Sails & rigging

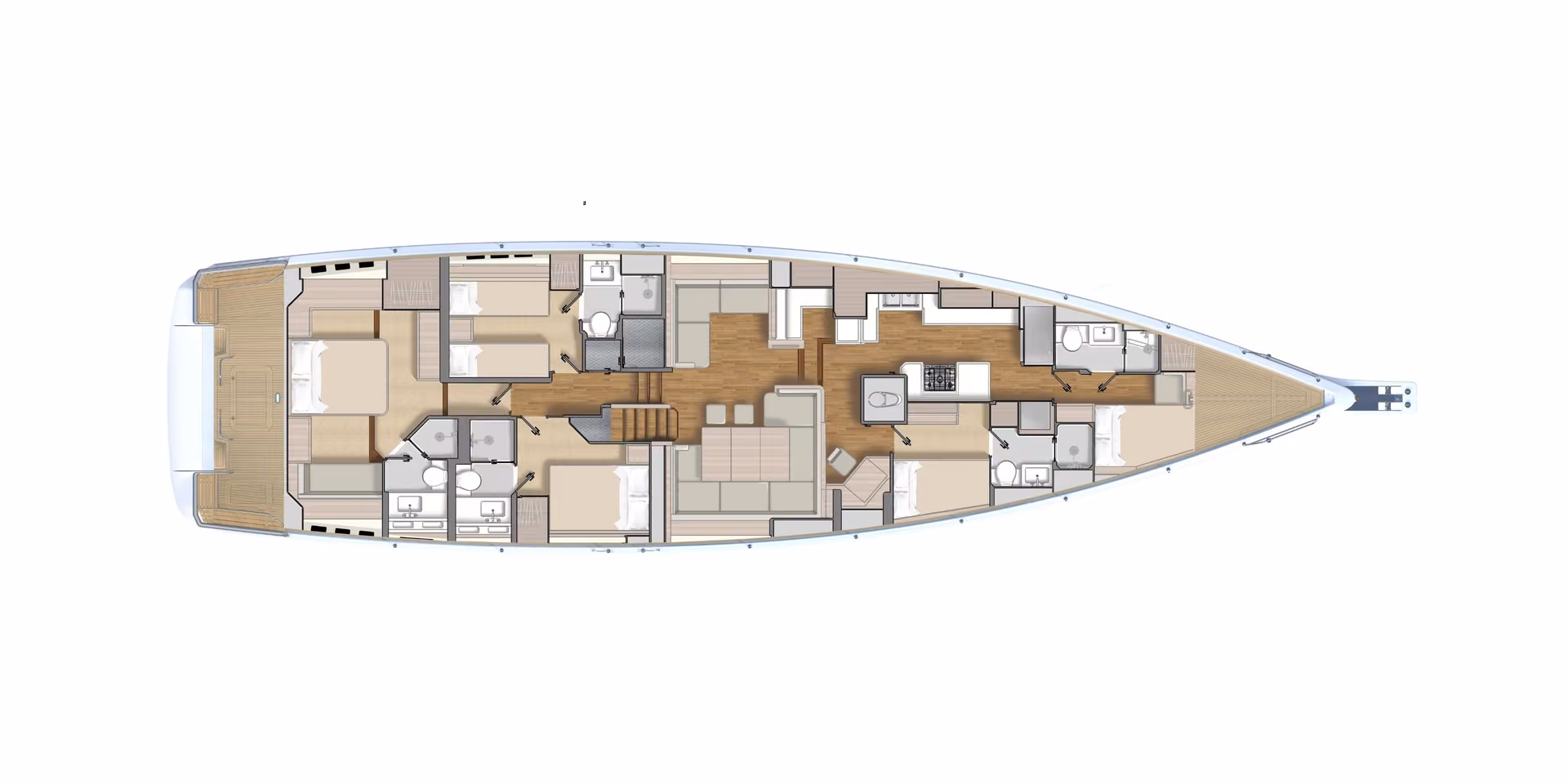

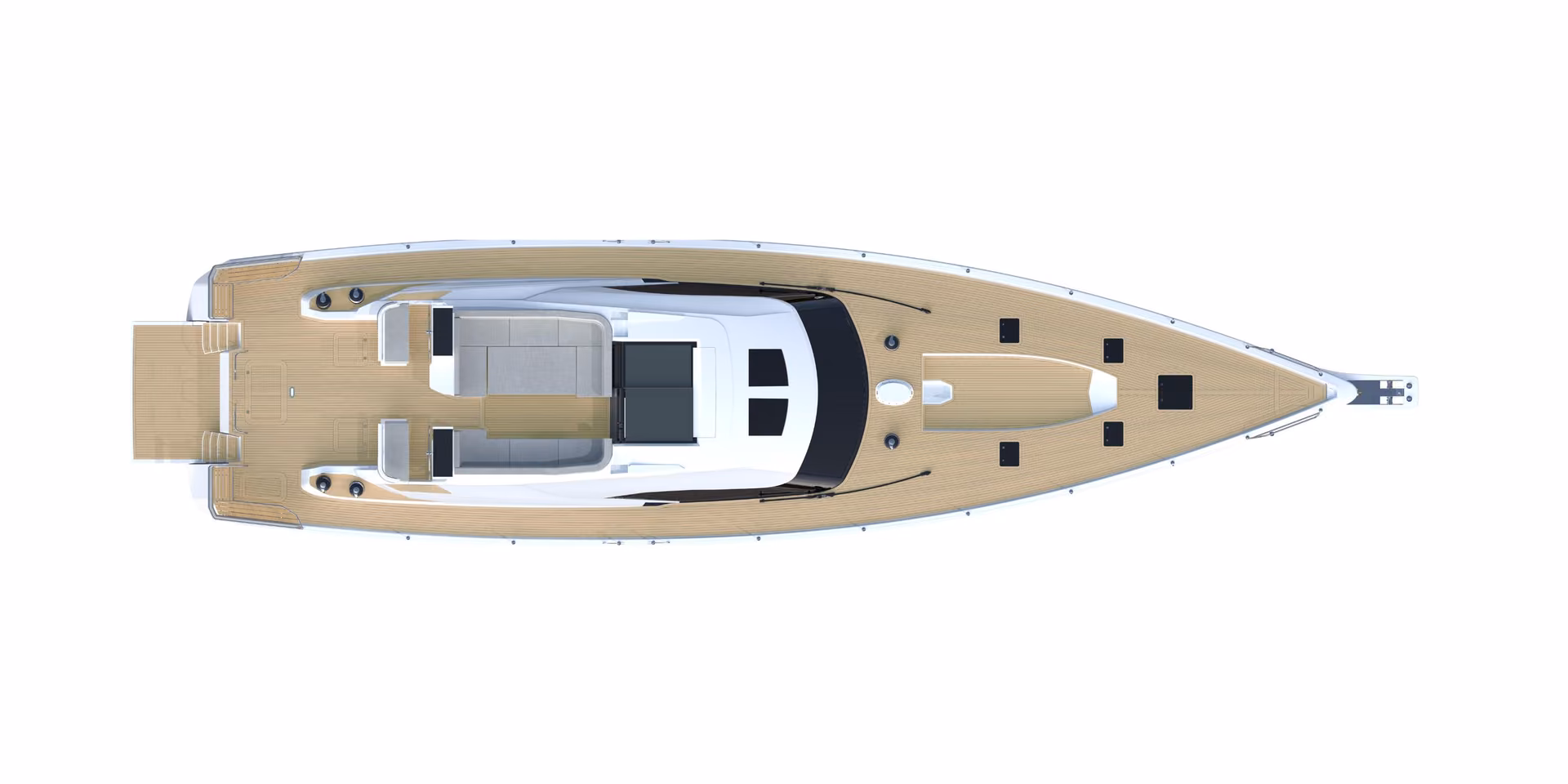

Plans & layouts
