Oyster 745
Length
22.74 m
Beam
5.91 m
Draft
3.1 m
Cabins
4
All years

Specifications

All years
Length: 22.74 m
Beam: 5.91 m
Draft: 3.1 m
Displacement: 53957 kg
Cabins: 4
No. of engines: 1
Engine Power: 247 HP
Fuel Capacity: 2000 L
Water Capacity: 1500 L
Boat type: Sail
Boat Class: Cruiser Sail
Engine: Cummins Turbo-charged QSB6.7-250 184kW (247hp)

Model overview

The Oyster 745 is a customisable offshore cruiser with a sheltered cockpit, panoramic saloon and flexible guest and crew accommodation. Powered sailing systems support passage-making. Alongside the standard keel, an optional centreboard configuration reduces draught for access to shallower anchorages.

Additional specifications

  • Hull length: 21.93m
  • Waterline length: 20.03m
  • Draught, centreboard raised: 1.98m
  • Draught, centreboard lowered: 4.56m
  • Sail area, in-mast furling: 269m²
  • Sail area, slab reefing: 279m²
  • Approximate air draught, excluding antennas: 32.49m

Specifications reflect Oyster’s published information checked in September 2026. Standard-keel figures are shown above; optional layouts and equipment may differ.

For more information, visit the Oyster 745.

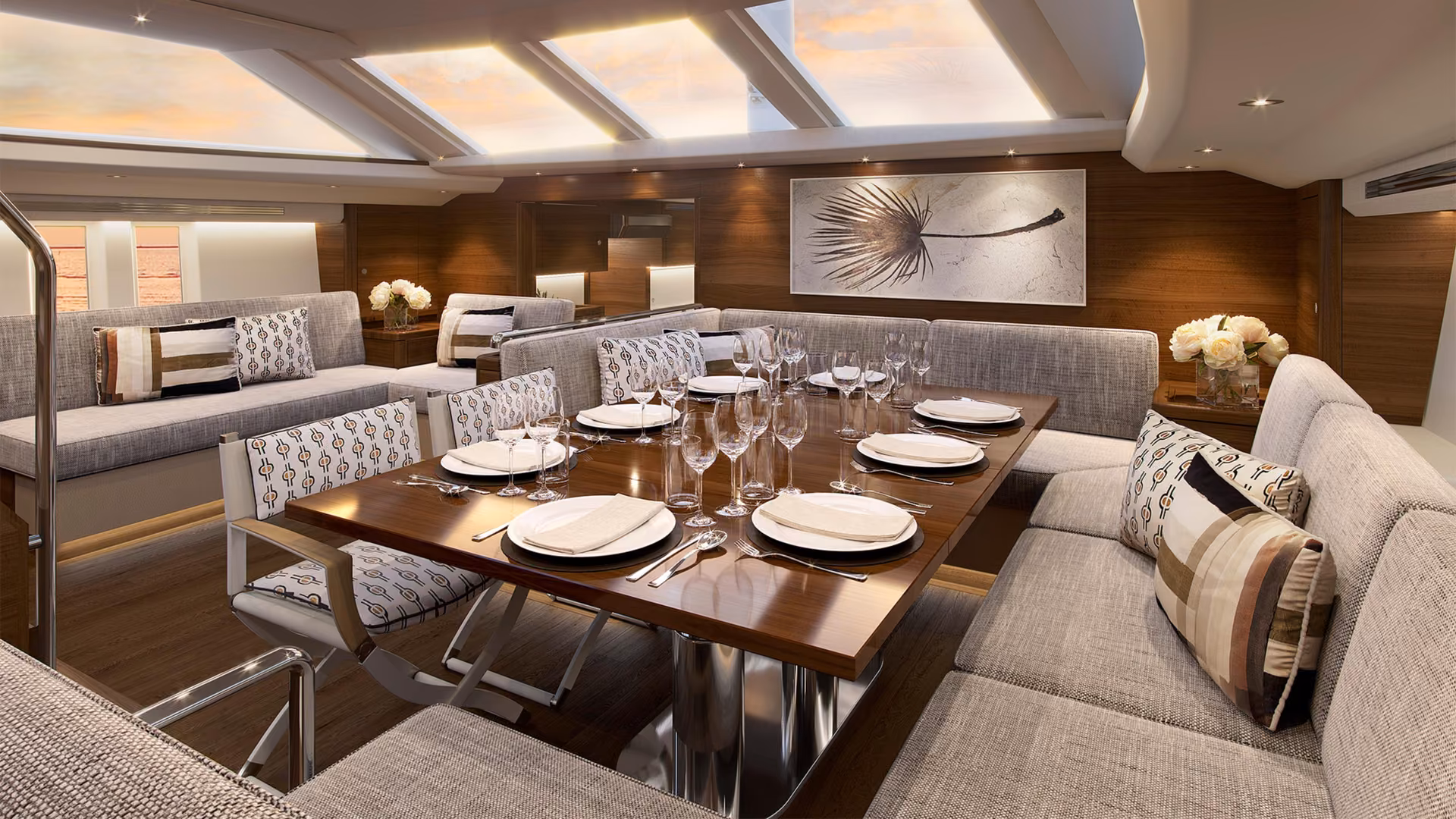

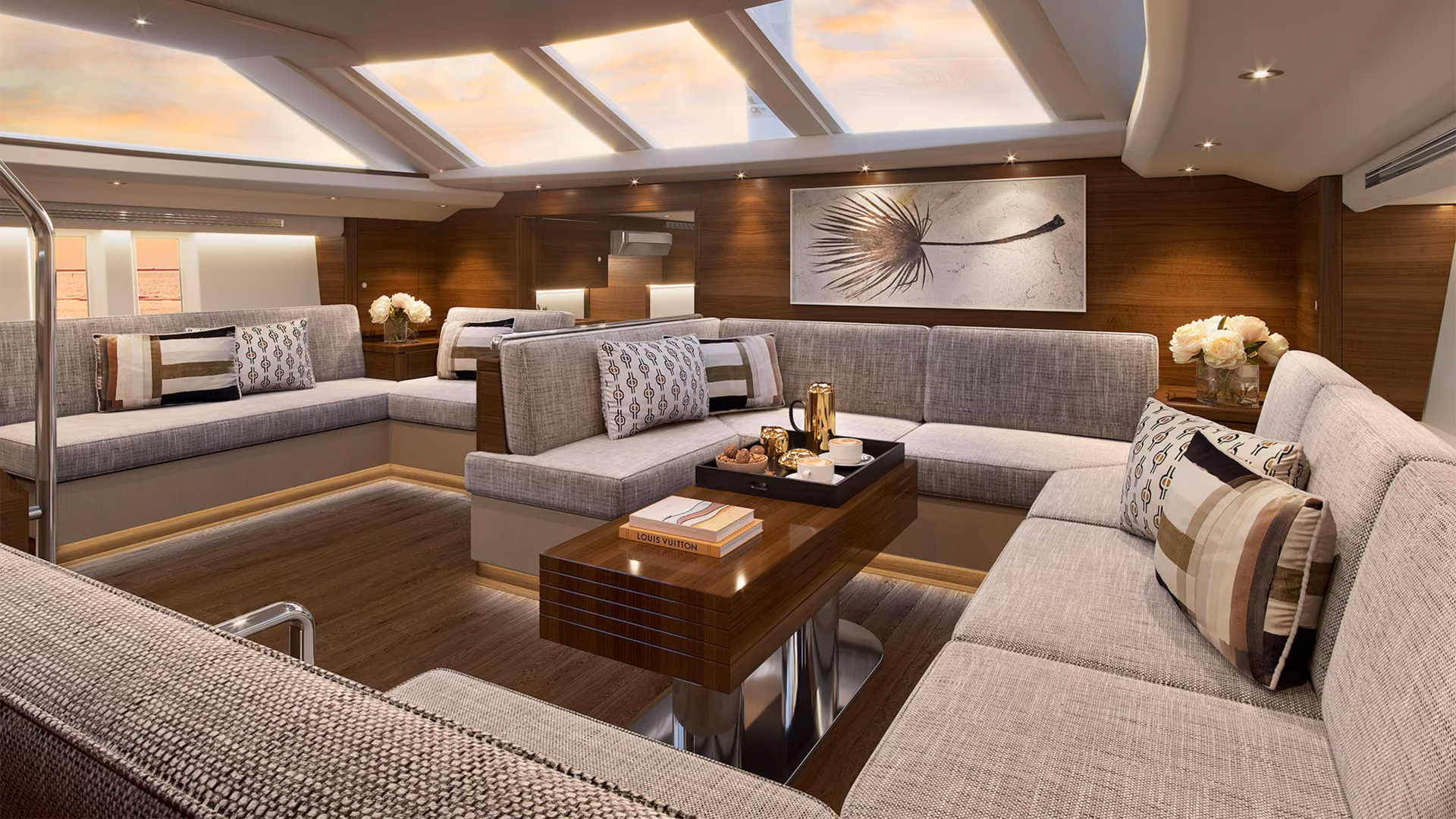

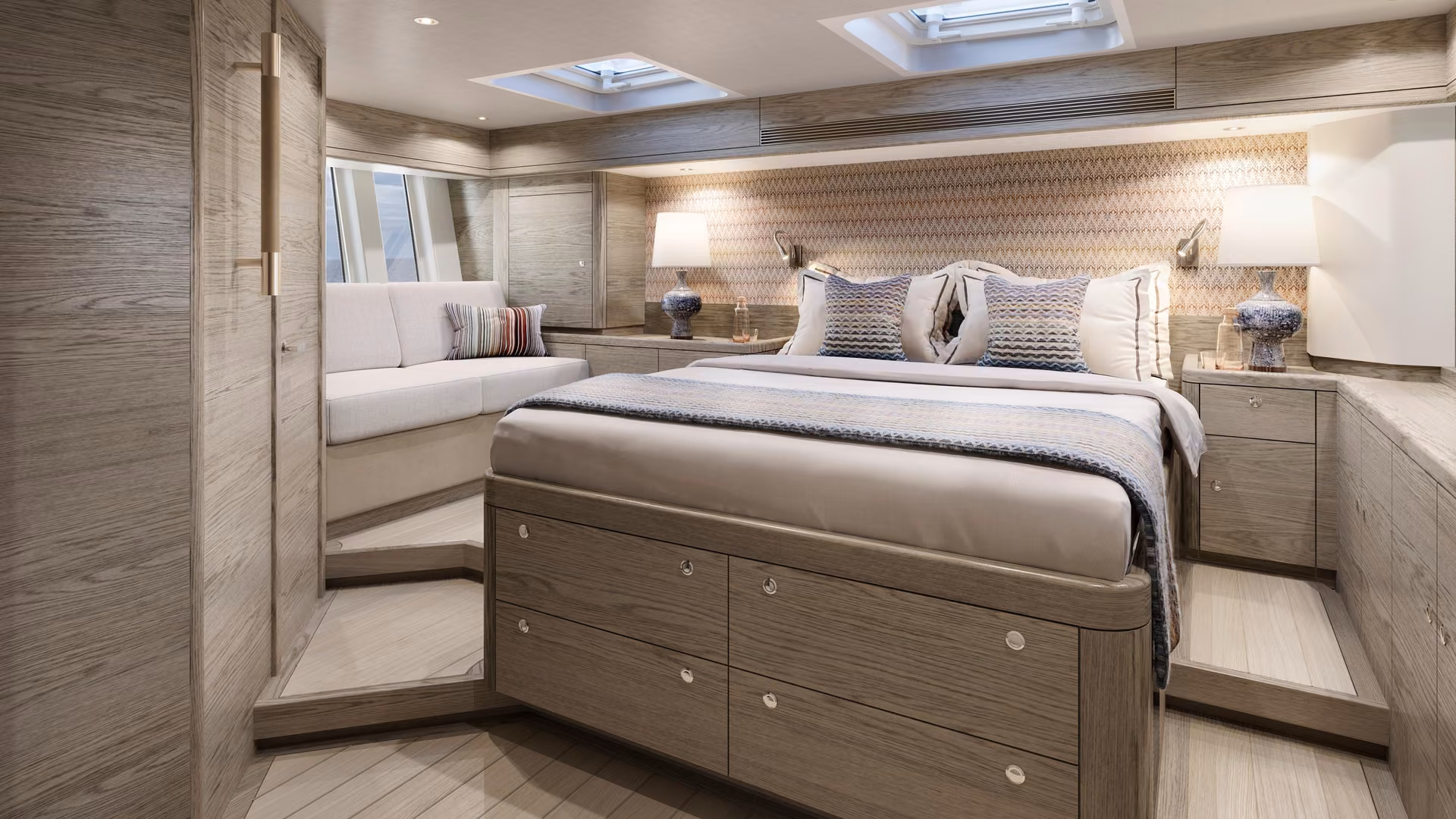

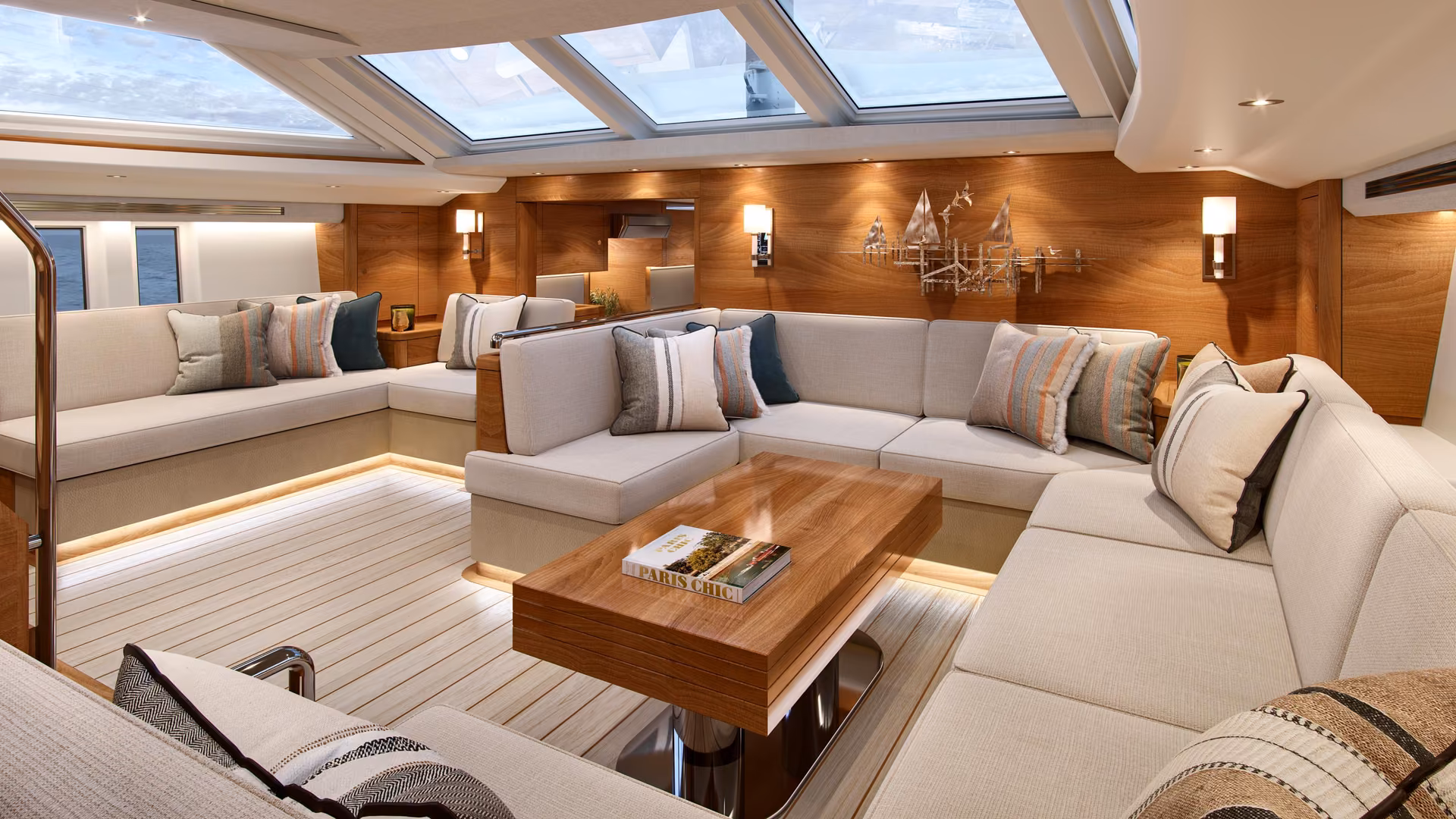

Interior

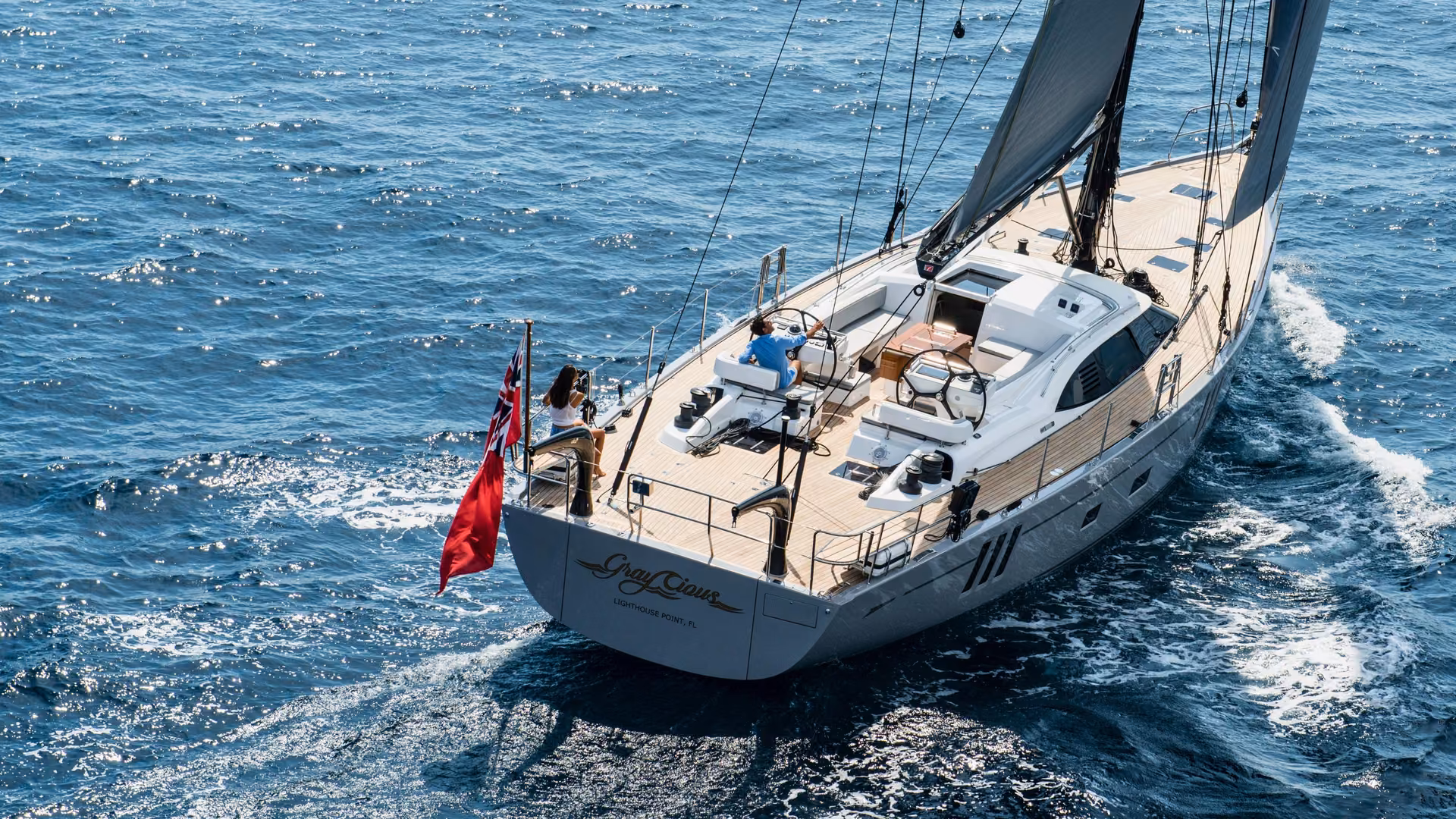

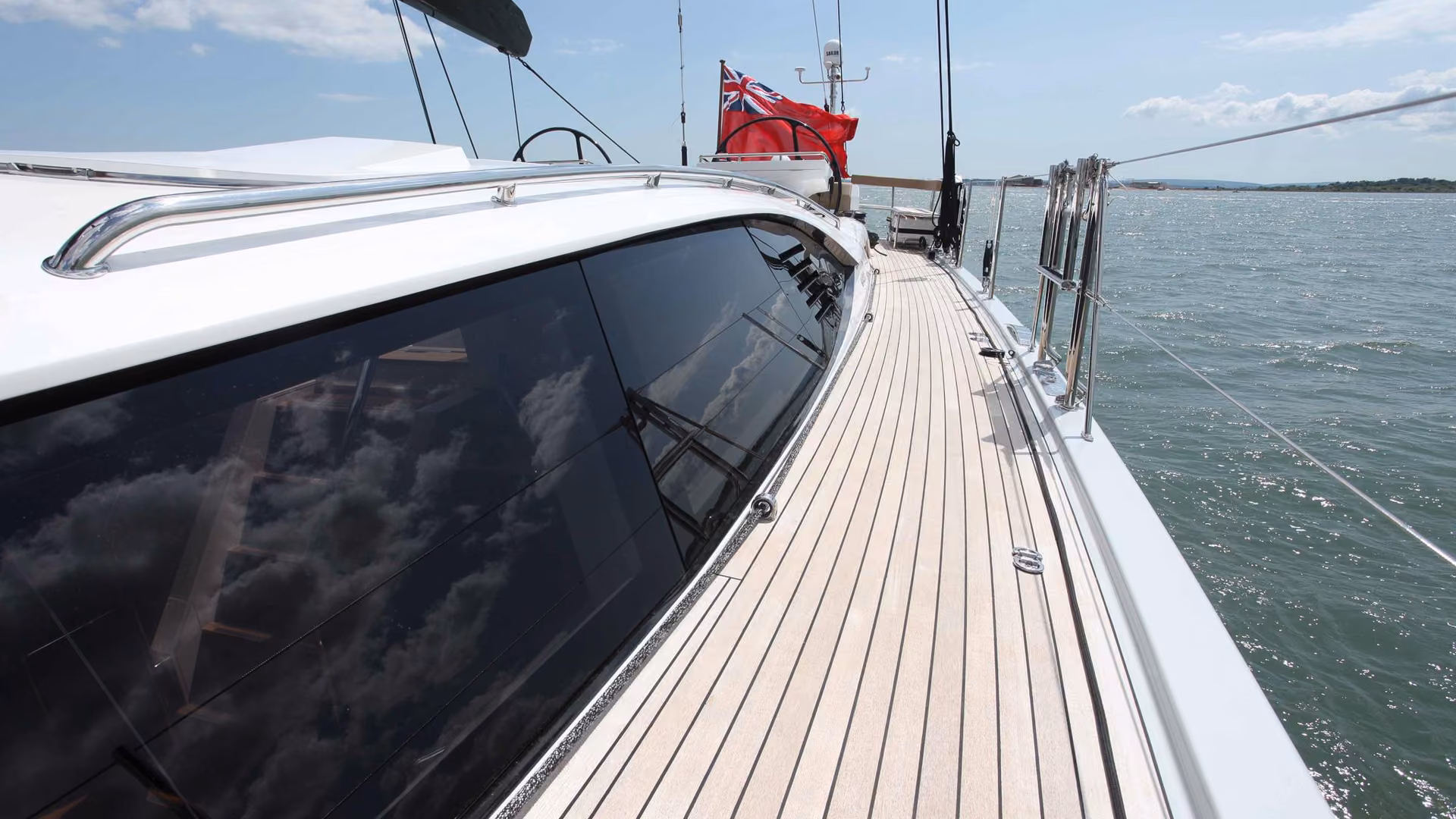

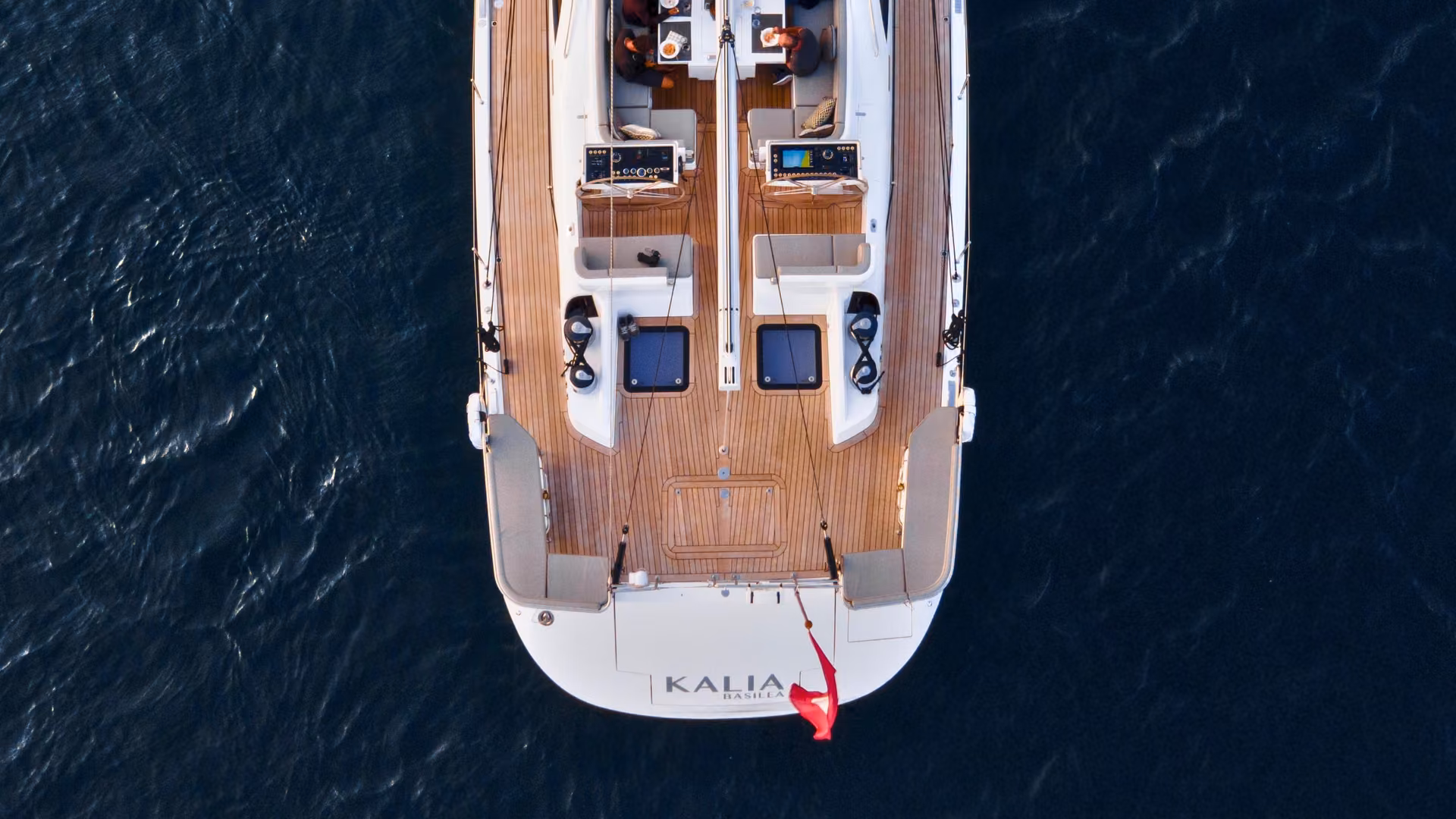

Deck

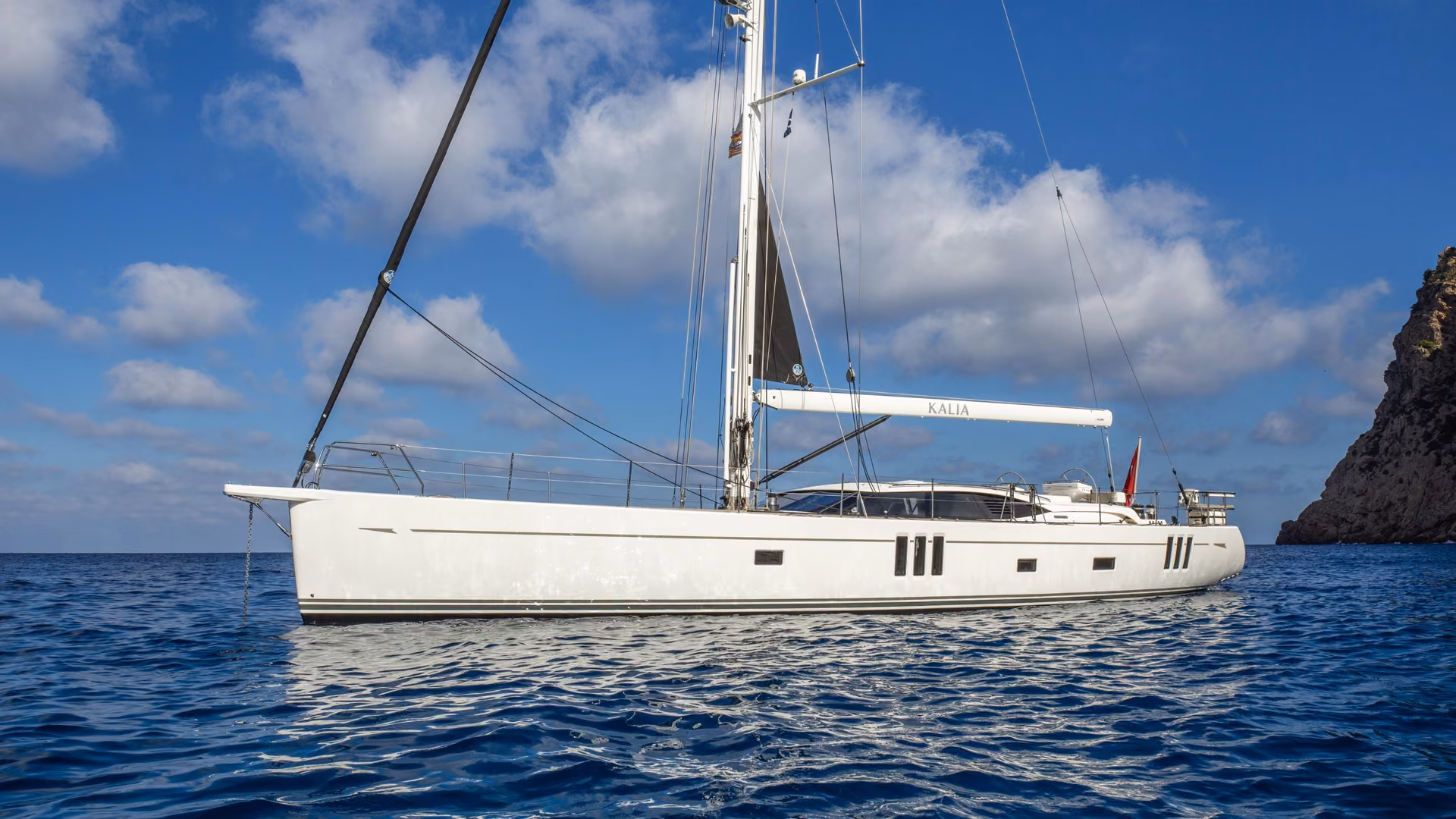

Sails & rigging

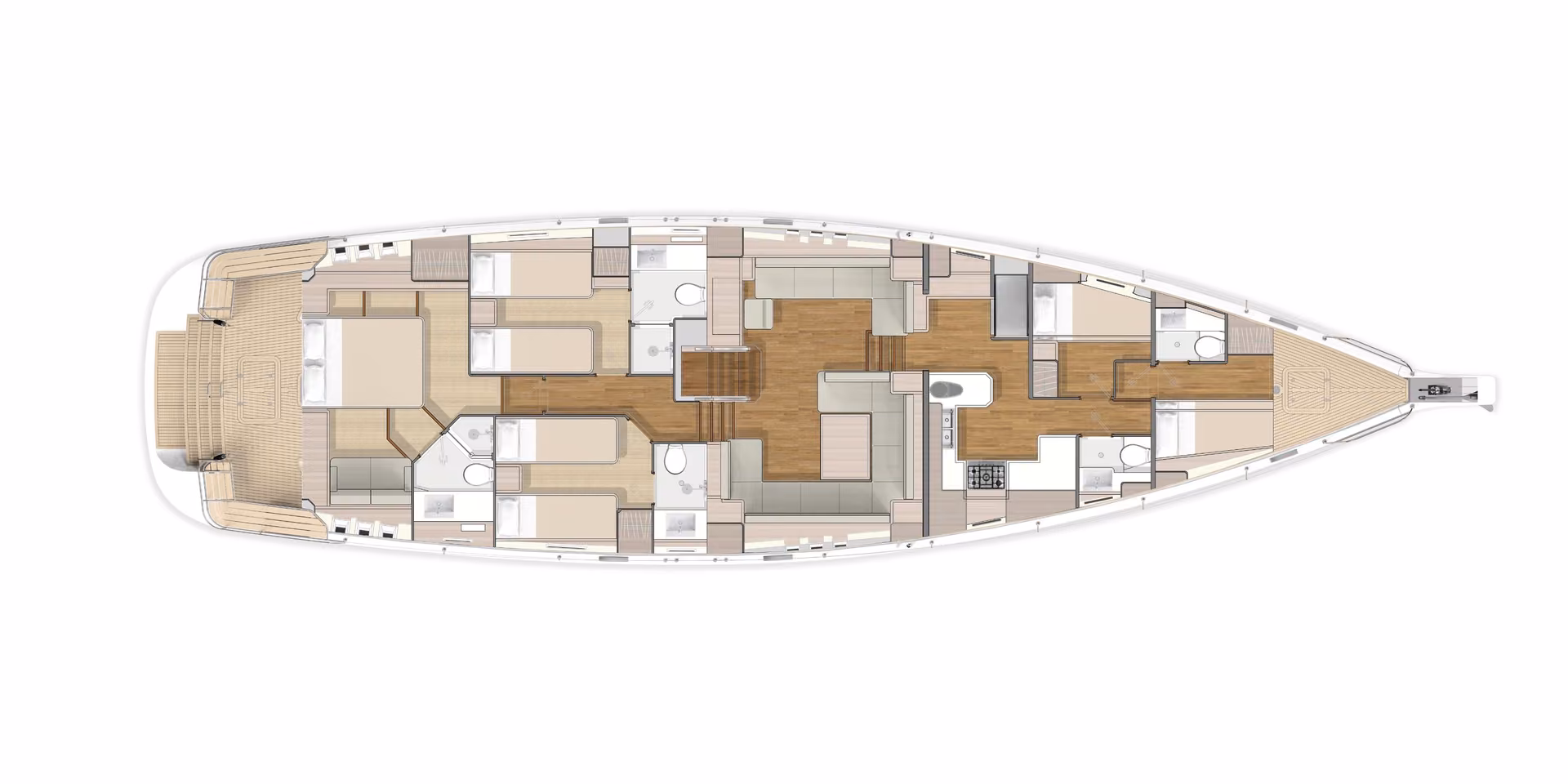

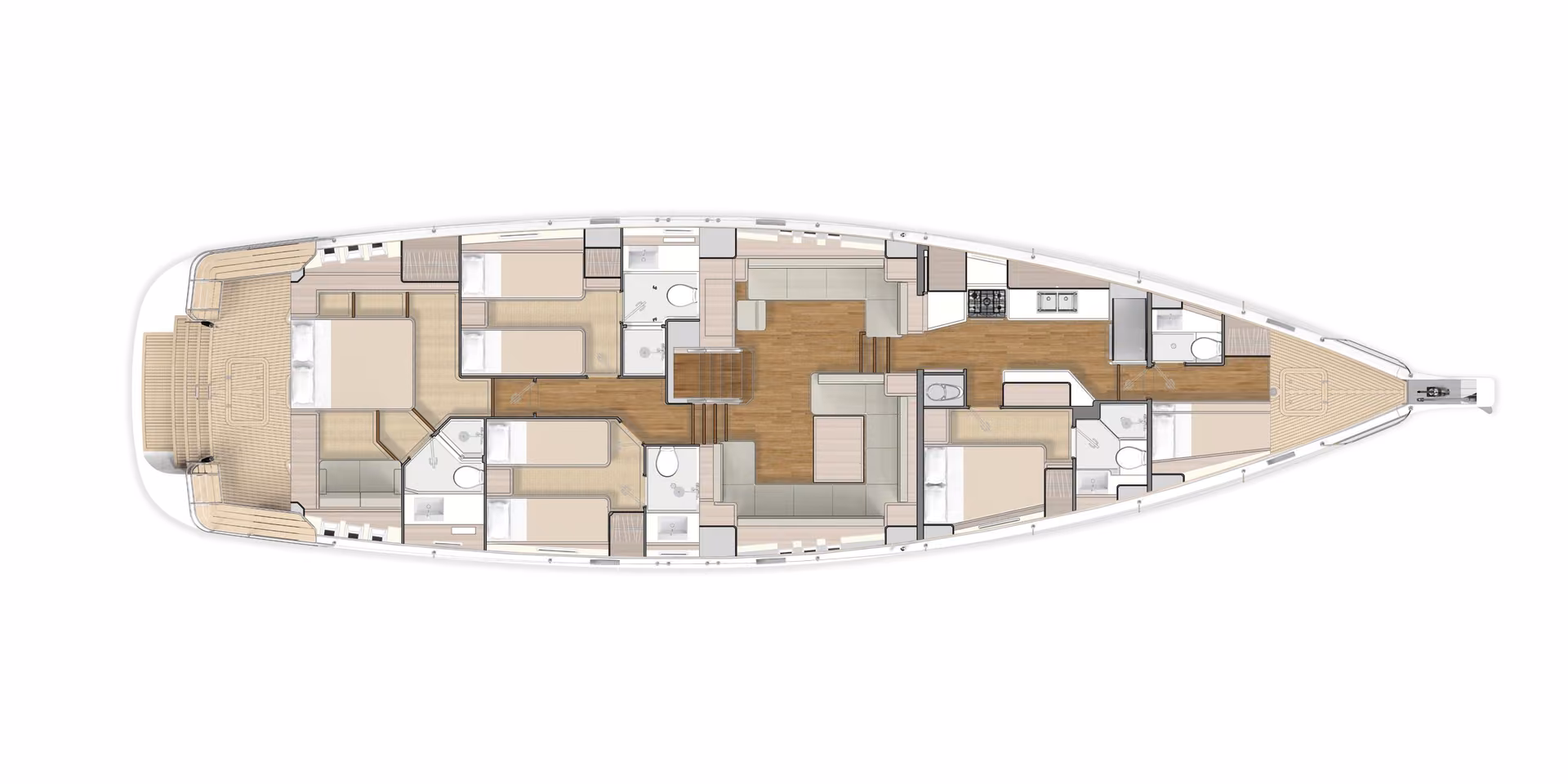

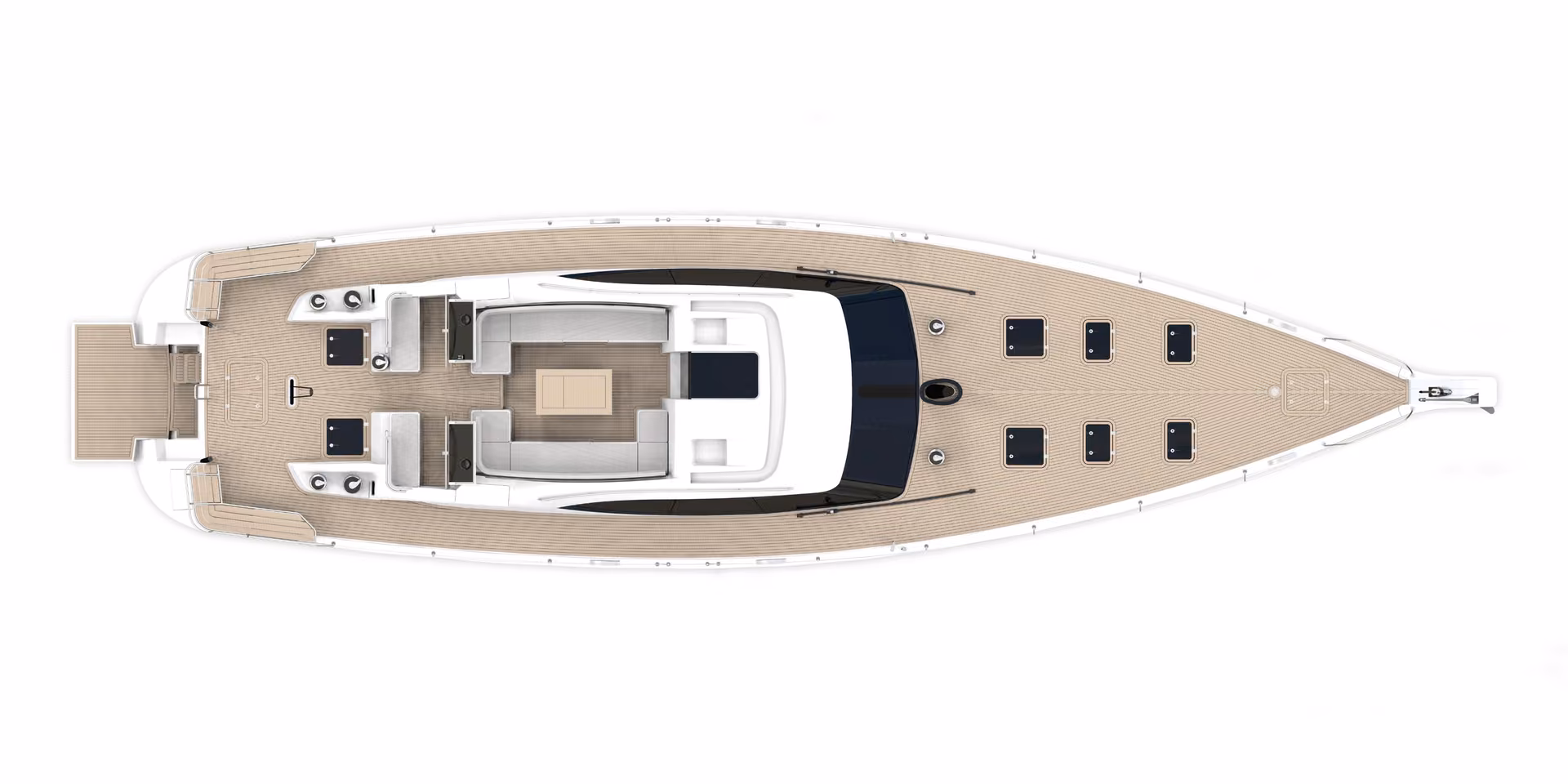

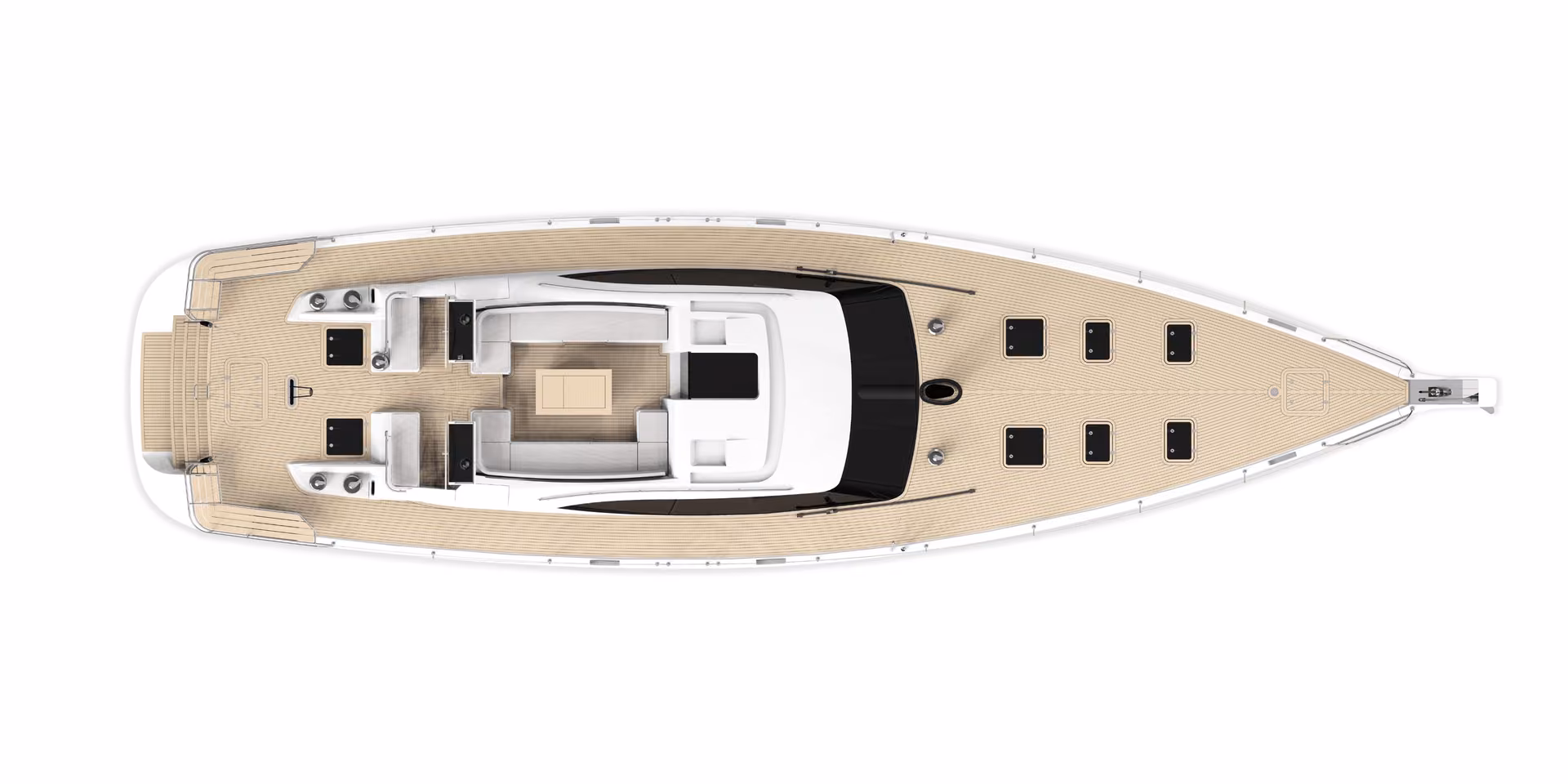

Plans & layouts
